Diagnostix™ 750W
$0.00
Wall Aneroid Sphyg
Ordering Information
REF: 750W-7IOR
UPC: 634782070403
Color: Orange
Size: Infant (9-14 cm)
Adcuff styles available
Please Call
(832) 722-2920
Por Favor llama
(555) 578-2713
Product Description
The popular wall model in our 750 clock-face aneroid series is the instrument of choice in patient exam and hospital rooms.
The traditional Adcuff variation features two-piece cuffs and bladders:
- Durable 210 denier nylon construction
- Integral flap that secures bladder and prevents bulging
- ADC’s proprietary Size Guide marking system prevents mis-cuffing
- Longer limb ranges for improved patient coverage
- Gauge hang tab (on most sizes), bladder flap, and “property of” tag
- Hook-and-loop adhesive rated to a minimum of 30,000 open/close cycles
- Three-year warranty on cuffs
Gauge features:

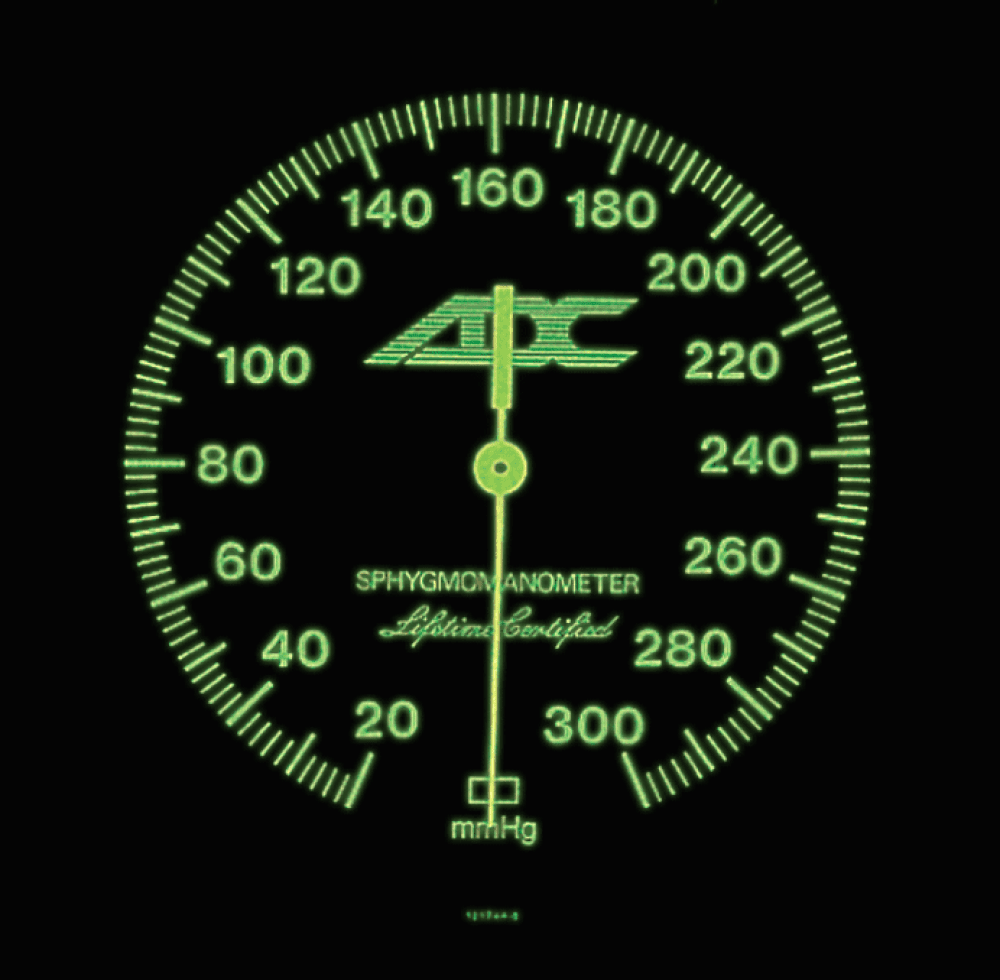

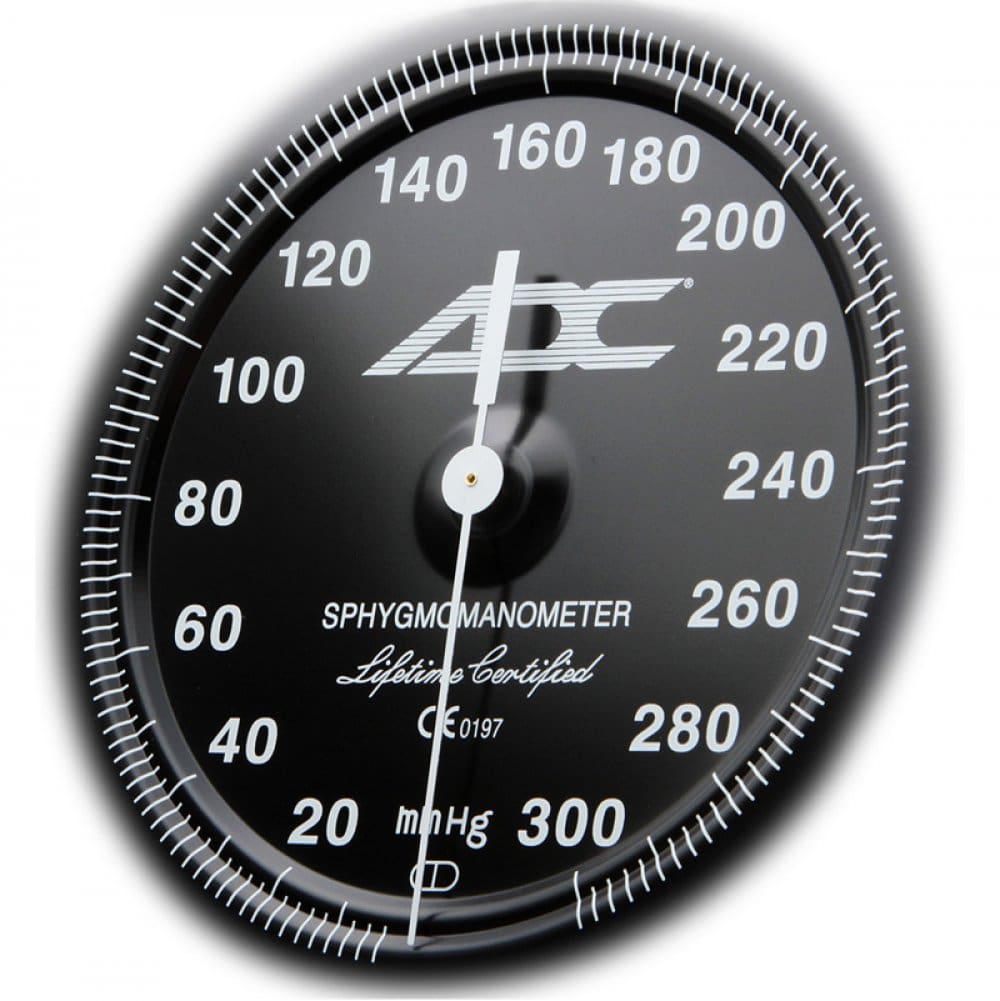

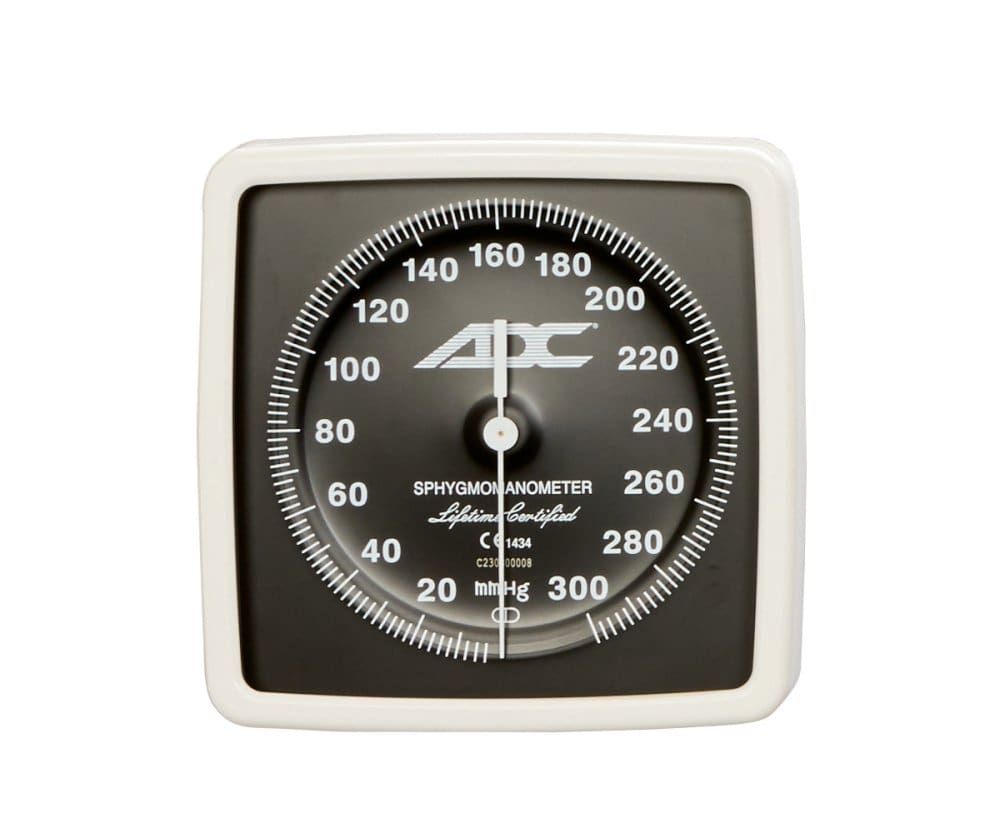

- Clock-style gauge with a large, easy-to-read, 6” luminescent dial for high visibility in virtually any light condition
- Precision-crafted, 300mmHg Japanese engineered manometer with no-pin stop movement, withstands the heaviest use
- Winter white wraparound bezel for a finished look
Wall mount features:

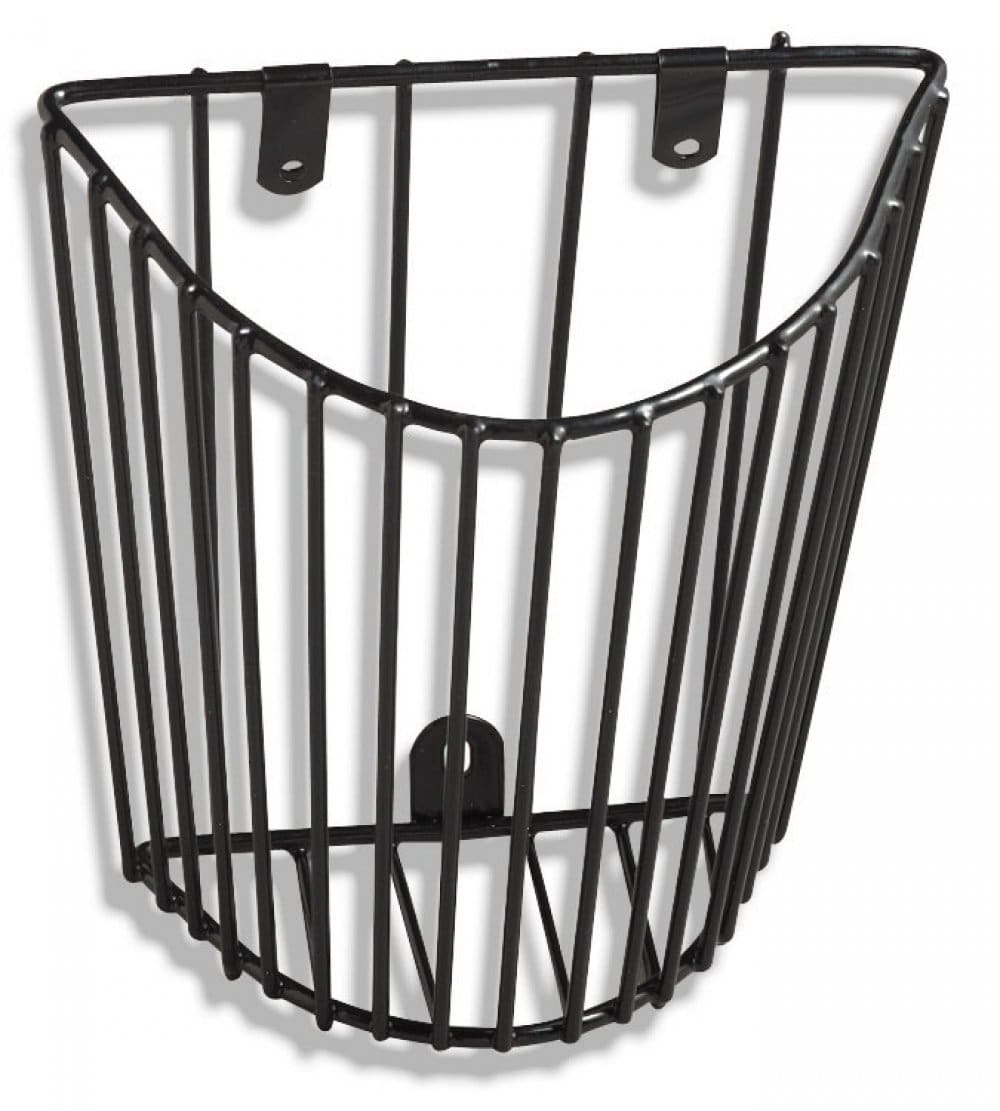

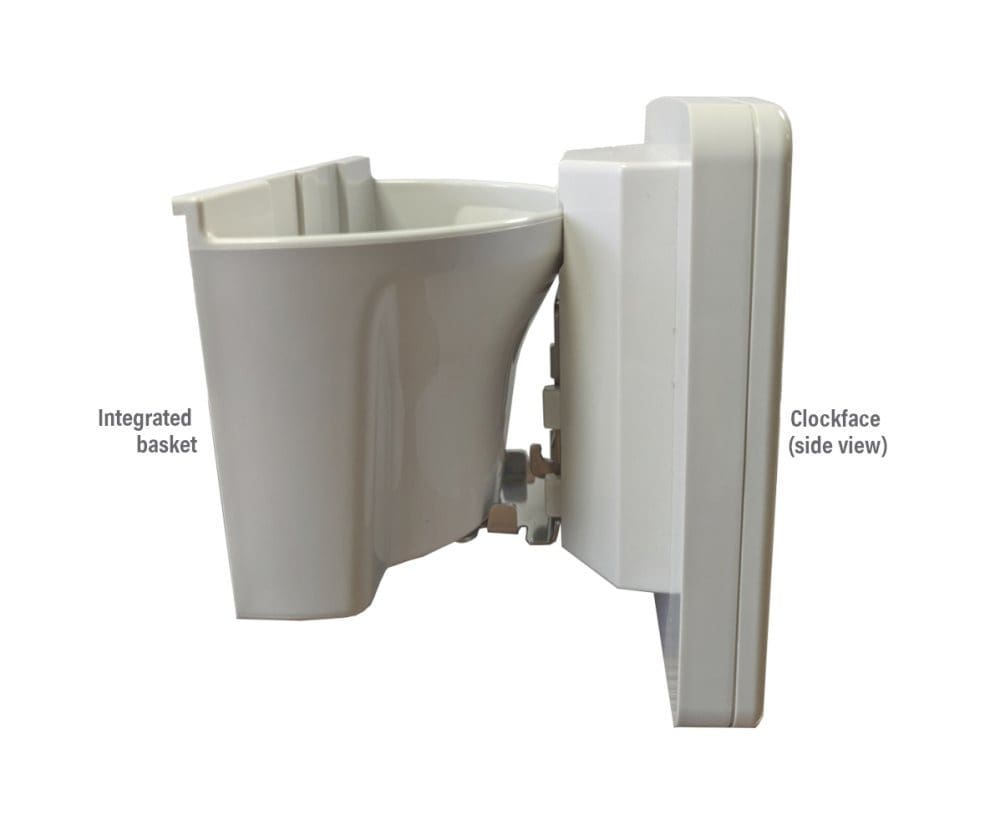

- Wall bracket with integral cuff storage swivels through 110° rotation for easy viewing; optional cuff basket also available
Other features:
- Adcuff inflation system with nylon cuff, Adflow bulb and valve, and eight-foot length (when extended) coiled tubing
- Adflow filter screen check and deflation valve for reduced dust build-up
- Adflow chrome-plated brass air release valve with micro-threads for precise deflation control
- Complete with all necessary hardware and assembly instructions
- Lifetime calibration warranty
Made without phthalates or natural rubber latex. Assembled, inspected, and packaged in the U.S.A from foreign components. Meets or exceeds ANSI/AAMI/ISO 81060-1.
Rigorous Quality Control
We subject virtually every component to rigorous quality control checks using custom-built testing equipment like gauge endurance machines, valve-and-bladder leak test machines, and thermometer baths. These ensure the parts used in our products meet or beat the toughest national and international standards on the market today. As part of our commitment to quality, ADC has earned and maintains certification to the ISO 13485 quality management system standard, specifically written for medical device manufacturers.
Award-Winning Customer Service
We’ve been winning awards almost as long as we’ve been in business, recognizing individual products and product lines, overall performance, customer support programs, and industry leadership. Our state-of-the-art distribution, combined with a knowledgeable, courteous staff, guarantees that the service you receive will be as outstanding as the products we deliver.
Commitment to Social Responsibility
Here at ADC we believe we have a responsibility to help others, whether they are local, national, or international. As a company, we dedicate our time and resources towards bettering the world we live in. From our partnership with the AHRC in providing employment for adults with disabilities, to direct financial support (through our cause-branded products) to the American Cancer Society and Els for Autism, to medical supply donations to organizations like AmeriCares and Project Hope, our social responsibility programs reach all corners of the globe.
The Best Design and the Finest Components
ADC products are manufactured from the finest materials with an uncompromising commitment to craftsmanship and durability. We offer proprietary features not found anywhere else, like gasket-sealed chestpieces, Adsoft Plus silicone eartips, the Adcuff with Size Guide marking system, and our remarkable gauge movements. Compare the quality and performance – and most important, the value – and you’ll discover the ADC difference.
Domestic Assembly, Inspection, and Packaging
The medical device market is rich with manufacturers. Some boast cheap imports that are often of questionable quality. Others sell high-quality products at higher prices. We offer the best of both worlds. We strive to bring you the highest quality instruments by combining fine craftsmanship from the world’s leading subcontractors, with domestic inspection, assembly, and packaging in our New York facility. Most of the core diagnostic products we offer are fully assembled in the U.S. from globally sourced components to guarantee that your experience with our products will be nothing short of excellent.
| Sphyg Type: | Clock-Wall |
| Gauge: | 805 |
| Gauge Warranty: | Lifetime |
| Sphyg Accuracy: | +/-3mmHg @ 50ºF(10ºC) - 104ºF(40ºC) |
| Sphyg Accuracy: at extended temperature range | +/-3mmHg or 2% whichever is greater @ <50ºF(10ºC) and >104ºF(40ºC) |
| Storage Temp: | -4ºF (-20ºC) - 131ºF(55ºC) |
| Valve Type: | ADFLOW |
| Number of tubes: | 2 Tubes |
| Cuff type: | ADCUFF |
| Cuff size: | Infant |

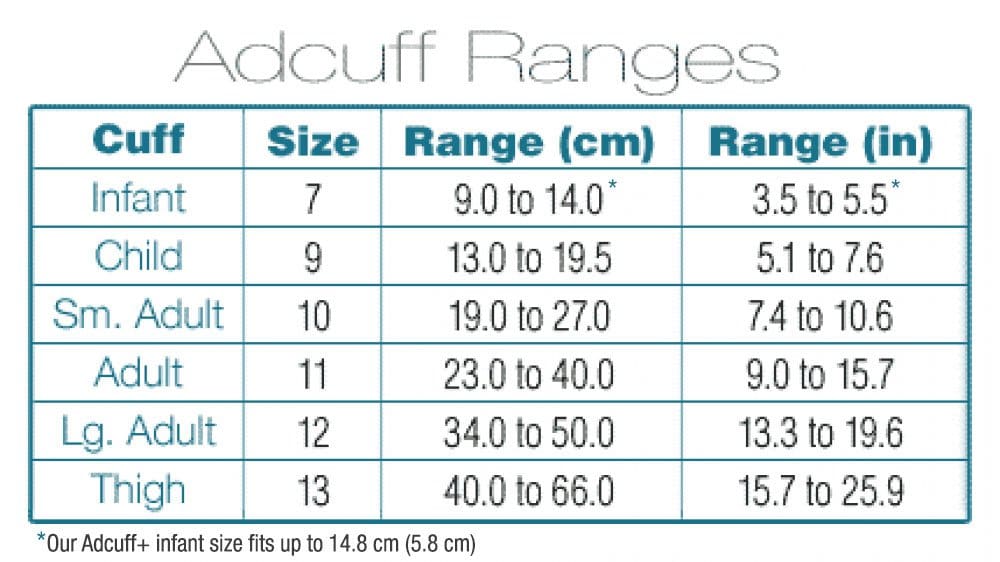

| Cuff Range: | 9-14cm |
| Inflation Warranty: | 3 Year |
| Cuff color: | Black |
| Zipper / Storage case: | NA |
Literature Name
- ADC® Sphygmomanometer Accessories – Instructions for use
- Diagnostix 752M, 750W Schematics and Parts List – Assembly Instructions
- Diagnostix™ Sphygs – Instructions for use
- Adcuff Literature Download
- Connector Change
- ADC® Accesorios Sphygmomanometer – Instrucciones de uso
- Diagnostix™ Sphygs – Instrucciones de uso
- INSTRUCCIONES DE ENSAMBLAJE Diagnostix Aneroids Tipo Reloj Pared (750W) y Móvil (752M)
- ADC® Tensiomètres Accessoires – Mode d’emploi
- Diagnostix™ Sphygs – Mode d’emploi
- ADC® Blutdruckmessgerät Zubehör – Gebrauchsanweisung, Pflege und Wartung
- Diagnostix™ Sphygs – Gebrauchsanweisung
- ADC® Sphygmomanometer Accessori – Istruzioni per l’uso
- Diagnostix™ Sphygs – Istruzioni per l’uso
- ISTRUZIONI DI MONTAGGIO Diagnostix Clock Aneroids Da Parete (750W) e Mobile (752M)
| Gauge: | Clock-Wall |
| Crystal: | 896N |
| Ring: | NA |
| Cuff 1: | 830-7IBK |
| Cuff 2: | NA |
| Cuff 3: | NA |
| Bladder 1: | 815-7I |
| Bladder 2: | NA |
| Bladder 3: | NA |
| Cuff and Bladder 1: | 845-7IBK-2 |
| Cuff and Bladder 2: | NA |
| Cuff and Bladder 3: | NA |
| Inflation System: | 865-7IBK |
| Bulb: | 870N |
| Valve: | 871 |
| Bulb & Valve: | 872N |
| Tubing: | 885N |
| Connector 1: | 8974F |
| Connector 2: | 8974M |
| Connector 3: | NA |
| Connector 4: | NA |
| Stand: | NA |
| Bracket: | NA |
| Basket: | NA |
| Hardware 1: | NA |
| Hardware 2: | NA |
| Hardware 3: | NA |
| Hardware 4: | NA |
