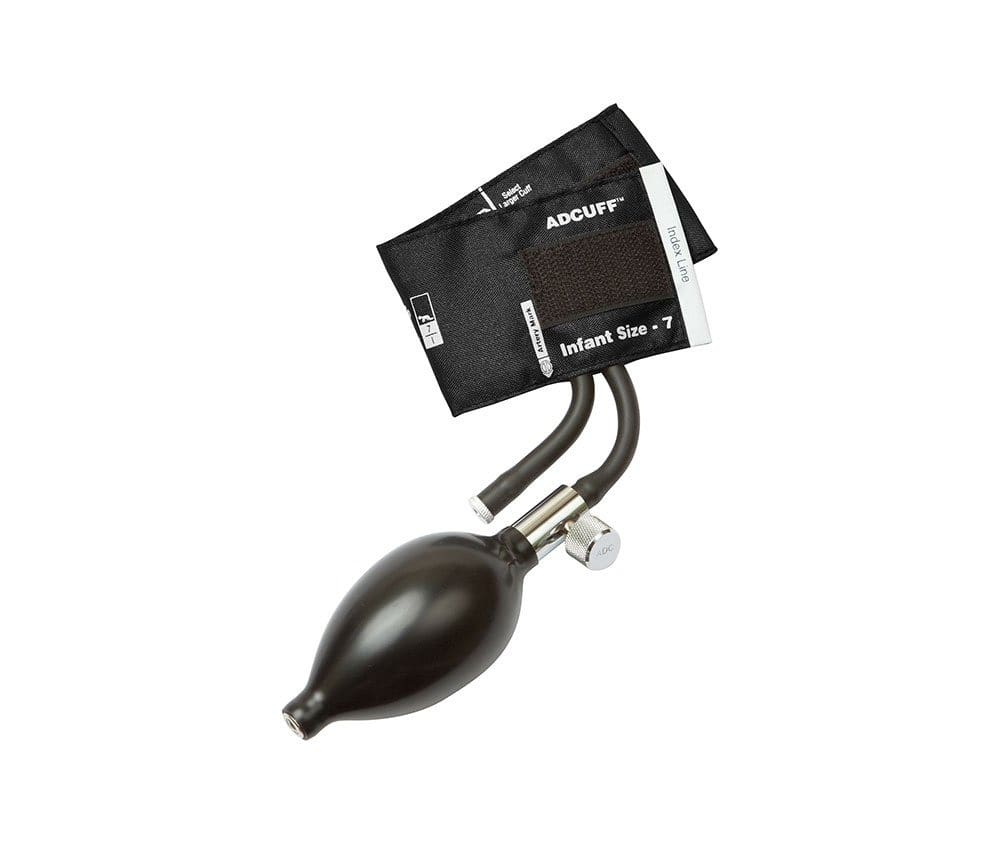

Adcuff™
Sphyg Inflation System
$0.00
Ordering Information
REF: 865-7IBK
UPC: 634782068660
Color: Black
Size: Infant (9-14 cm)
Please Call
(832) 722-2920
Por Favor llama
(555) 578-2713
Product Description

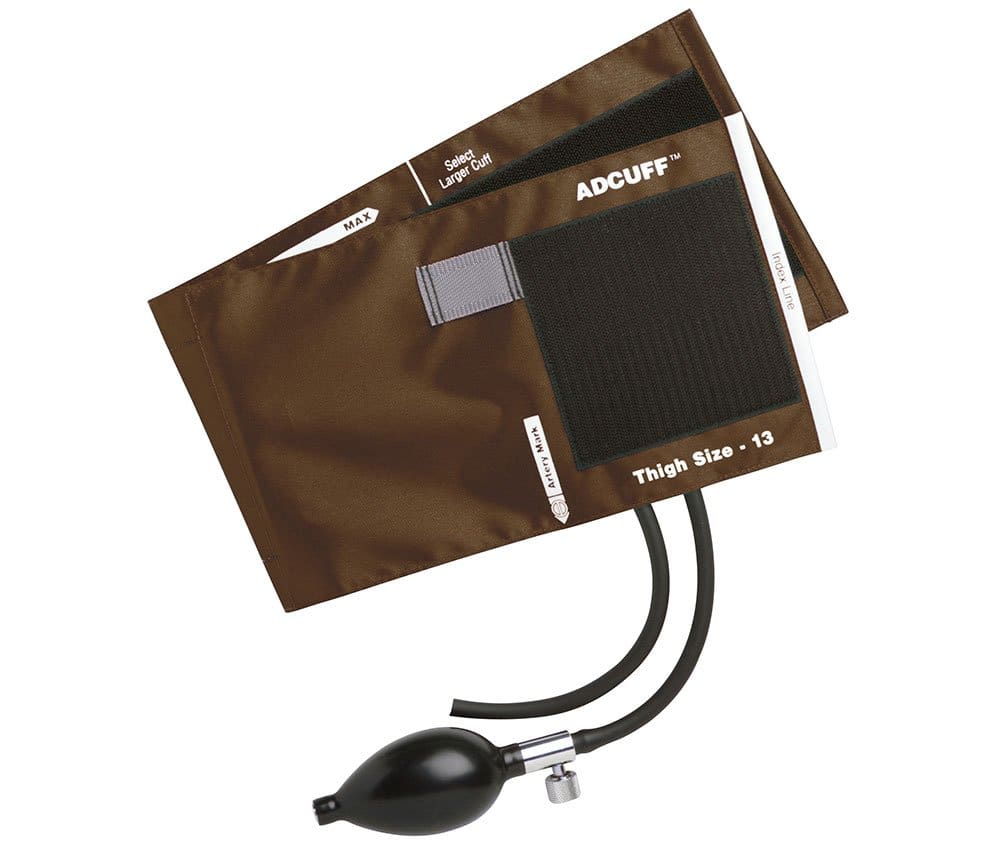

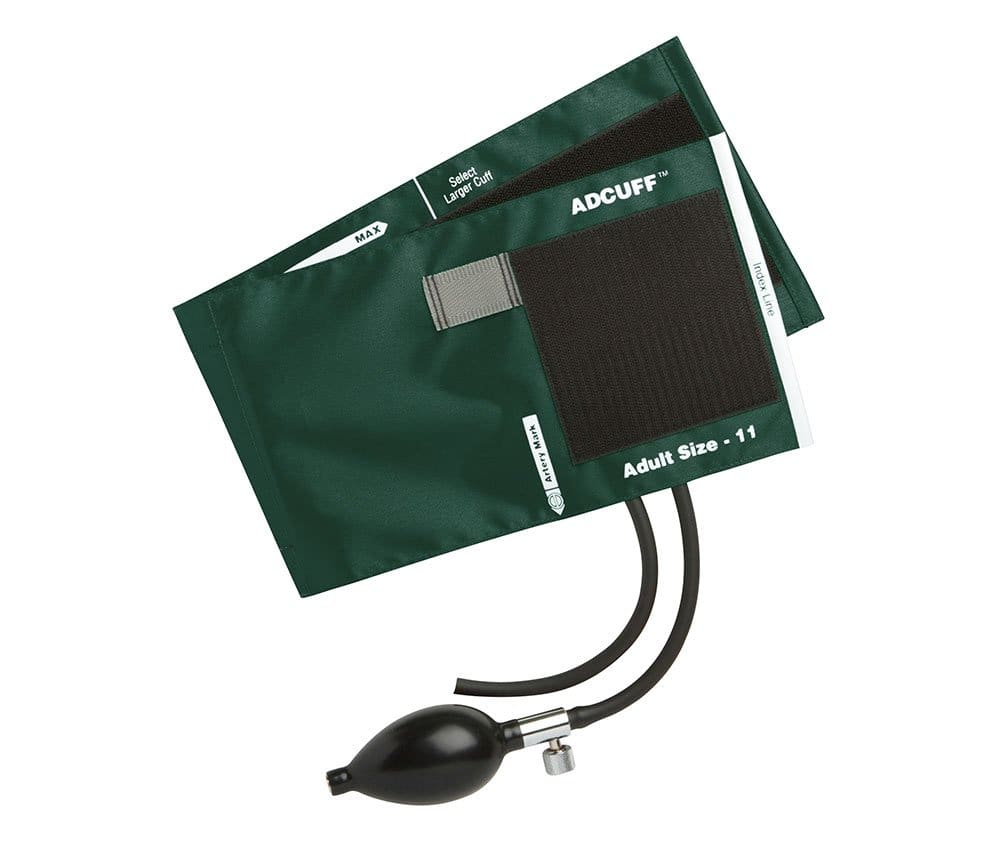

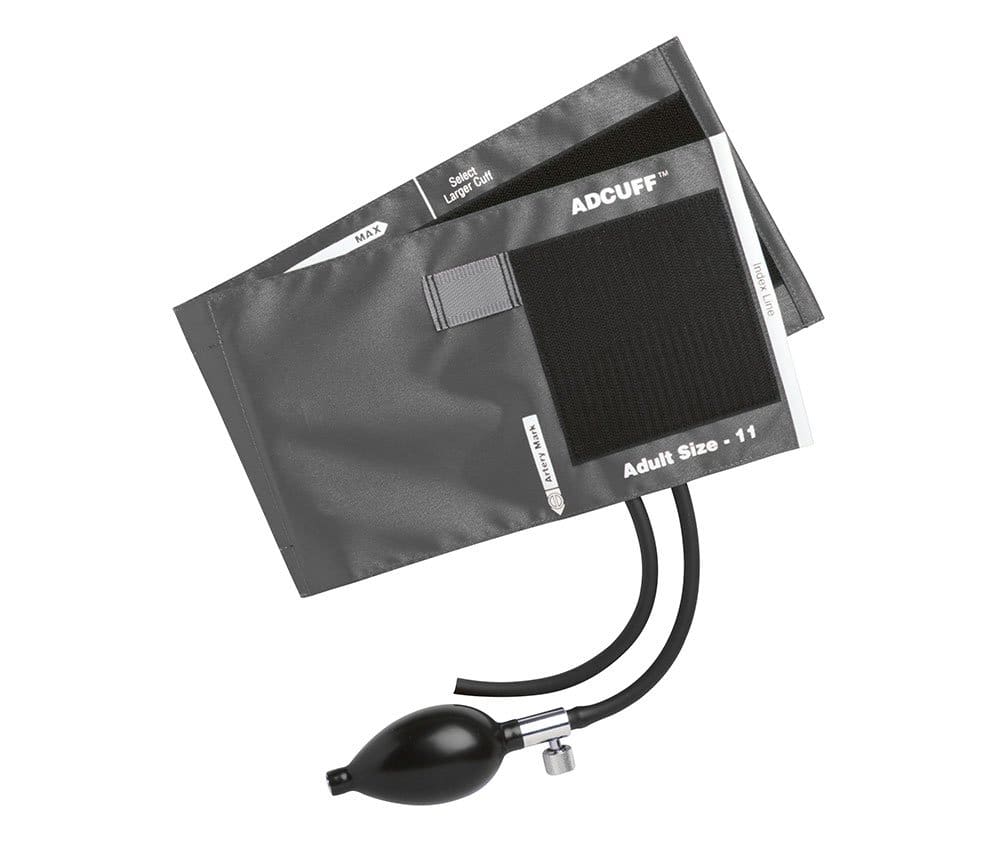

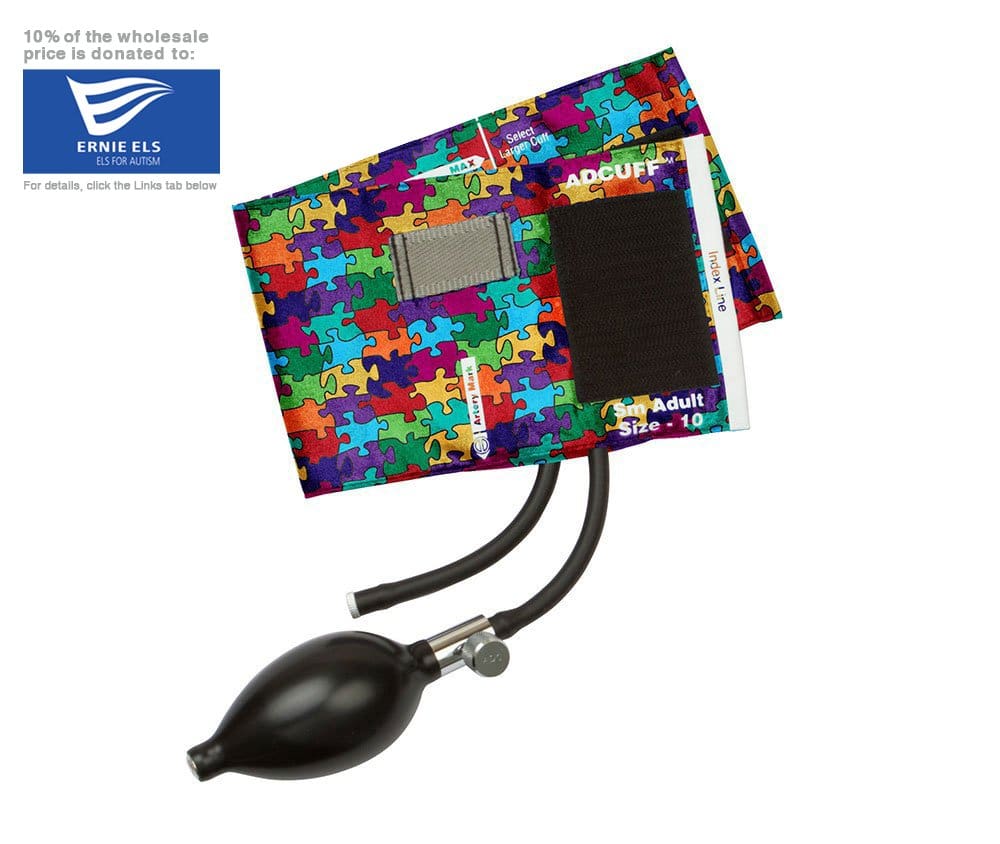

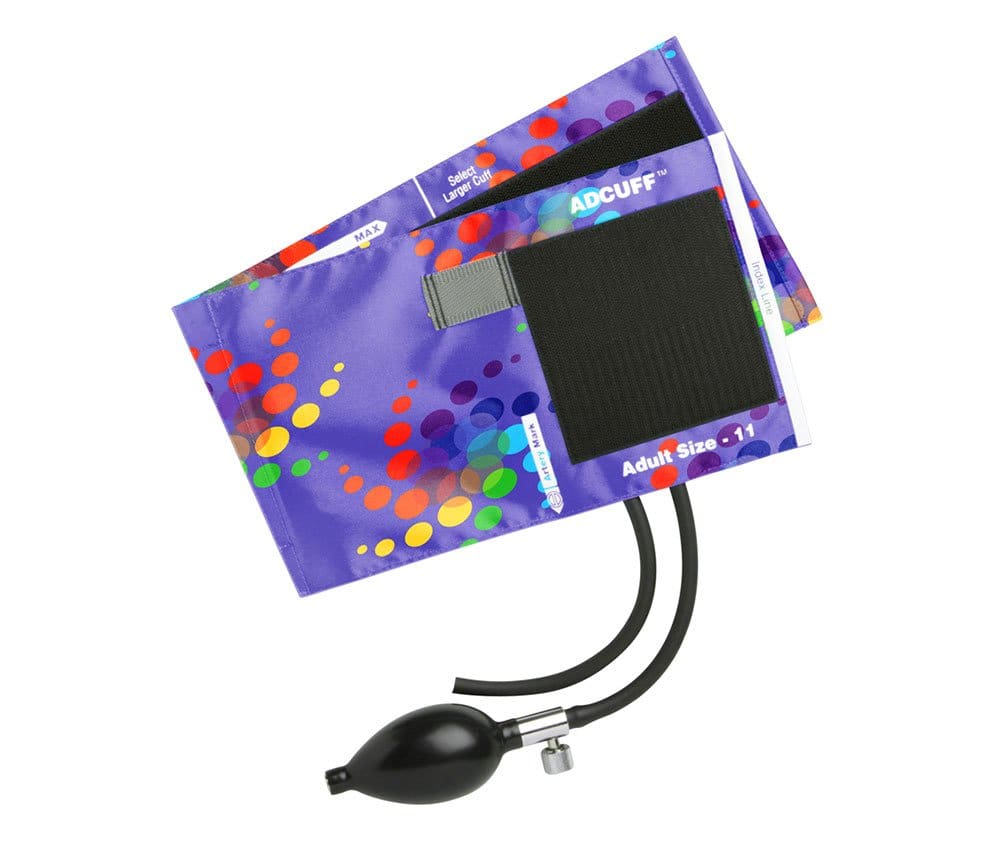

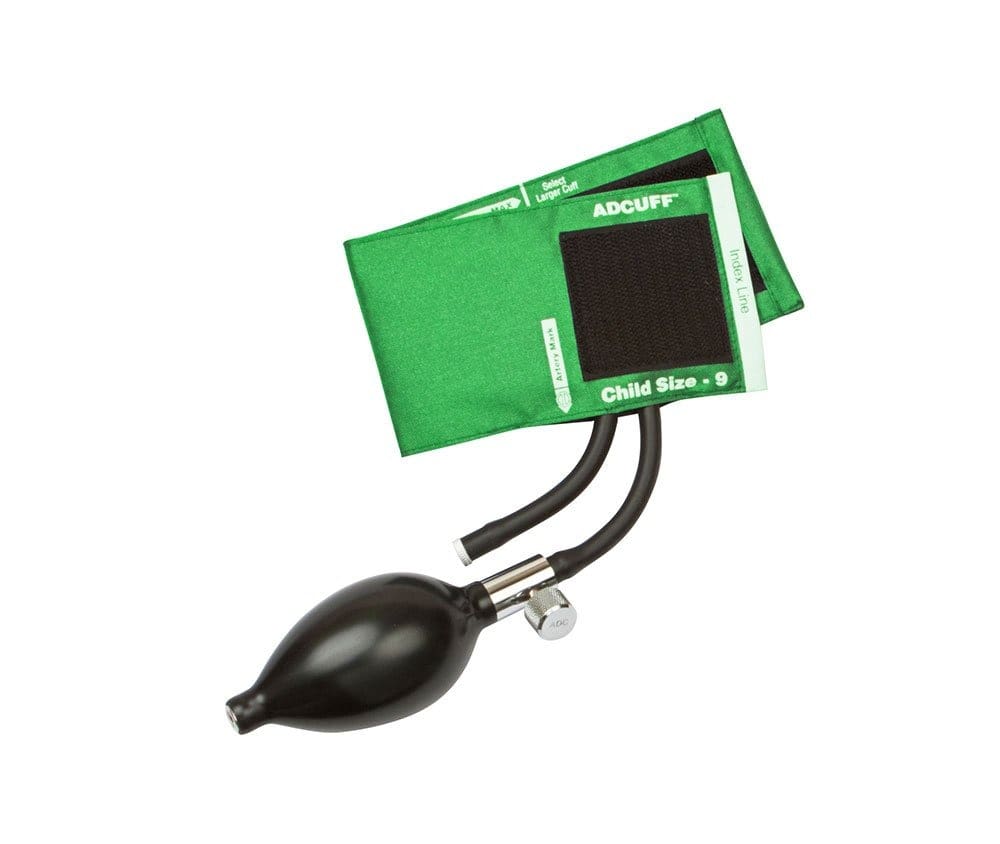

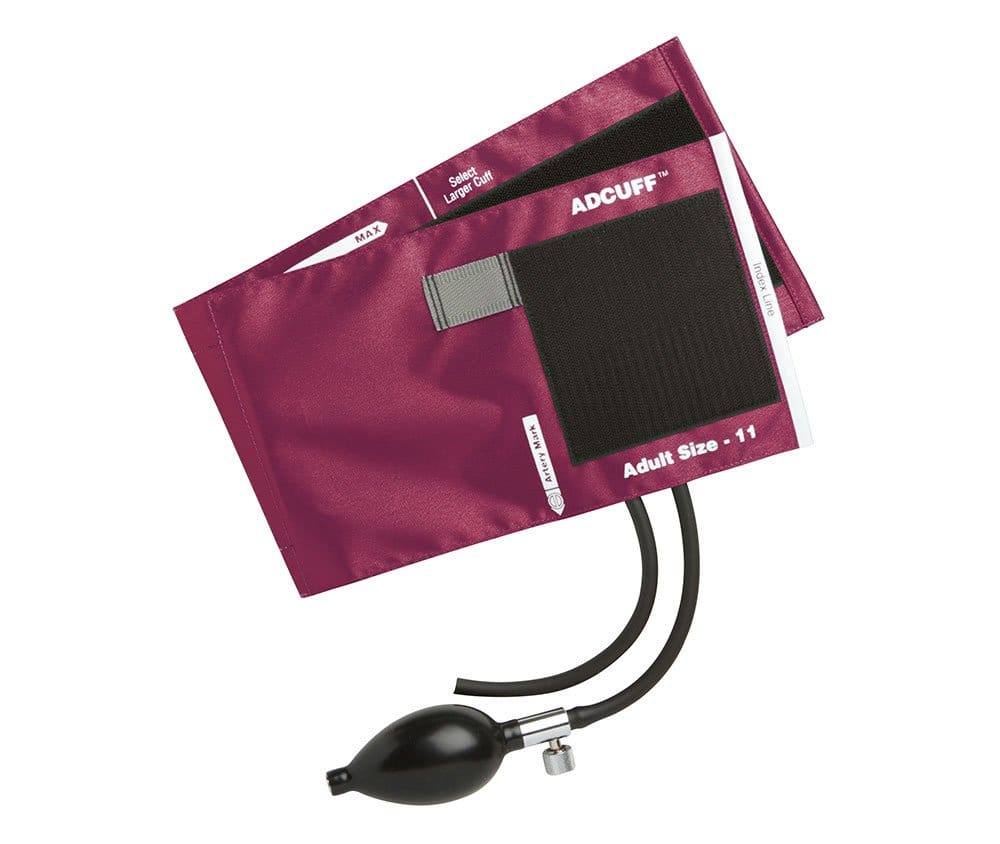

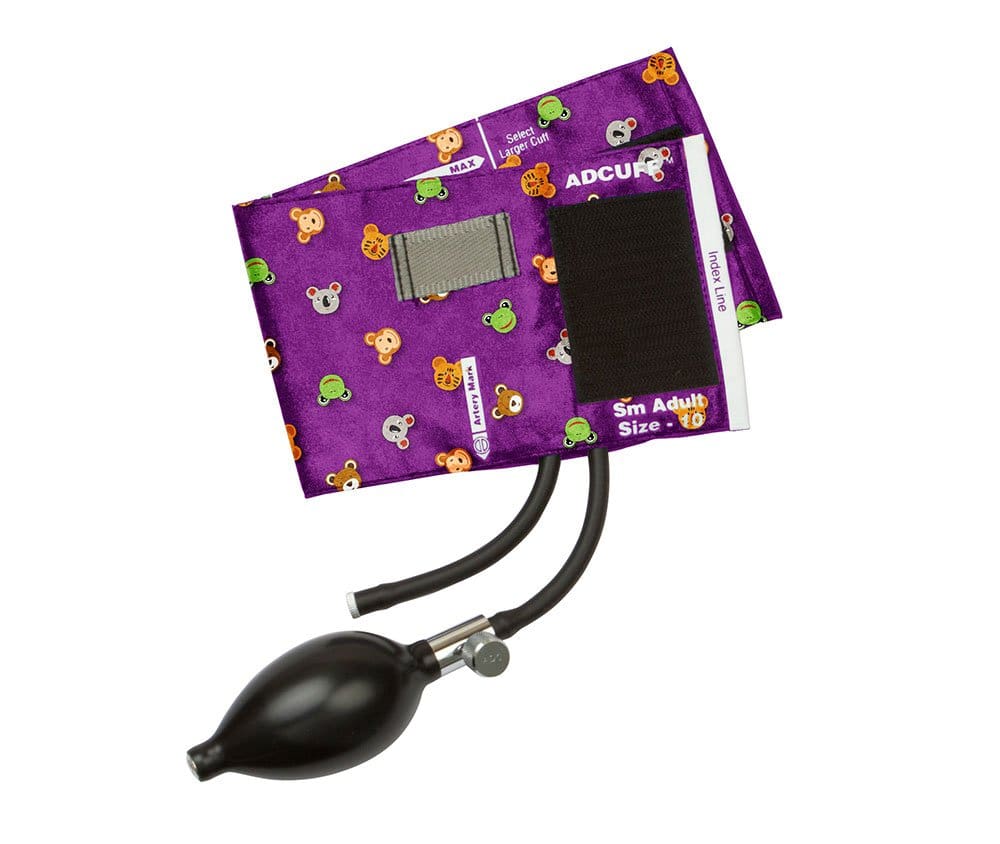

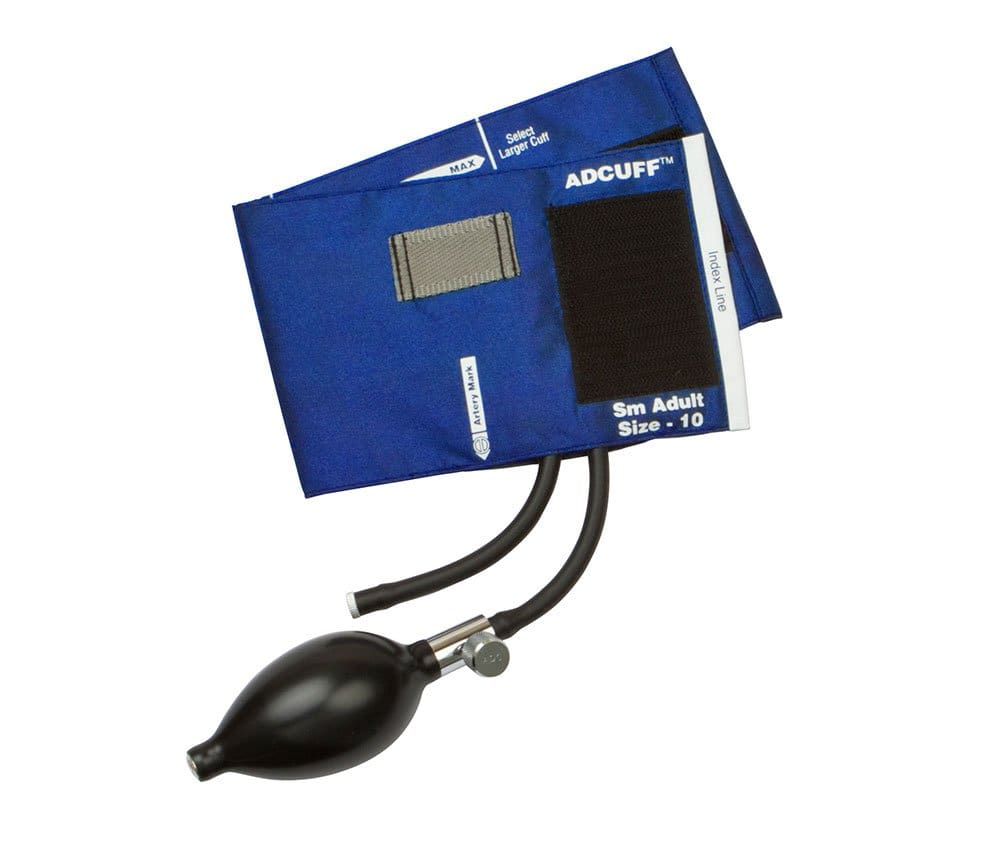

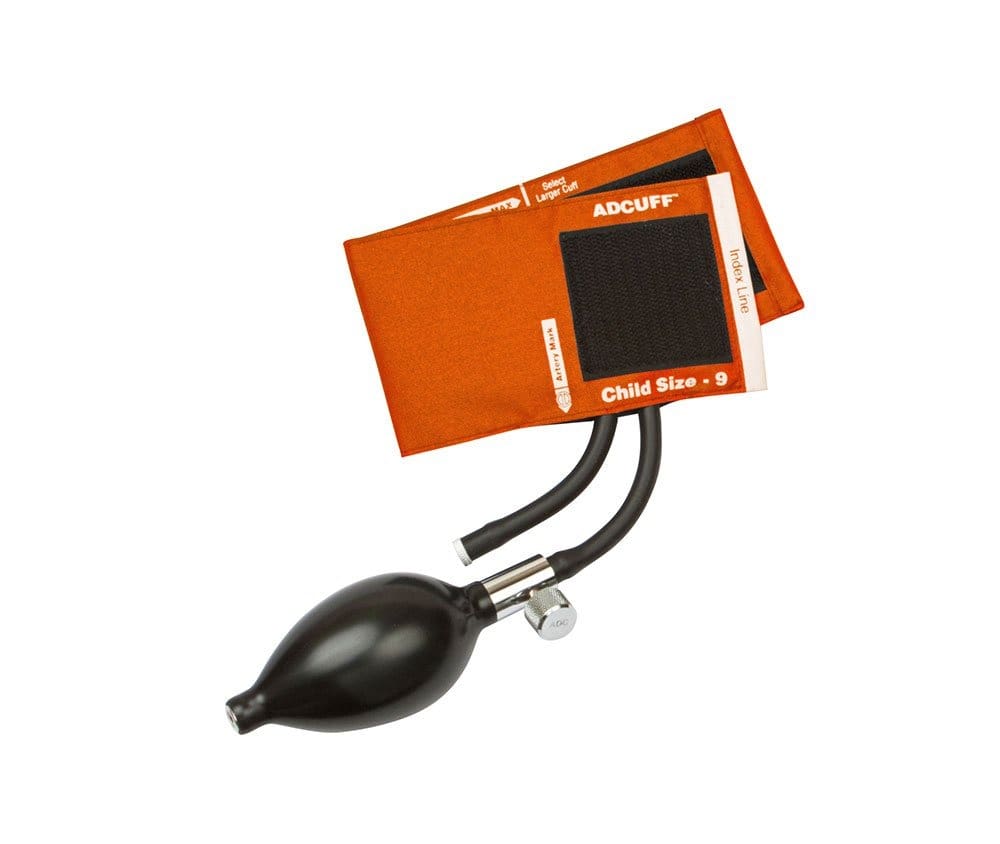

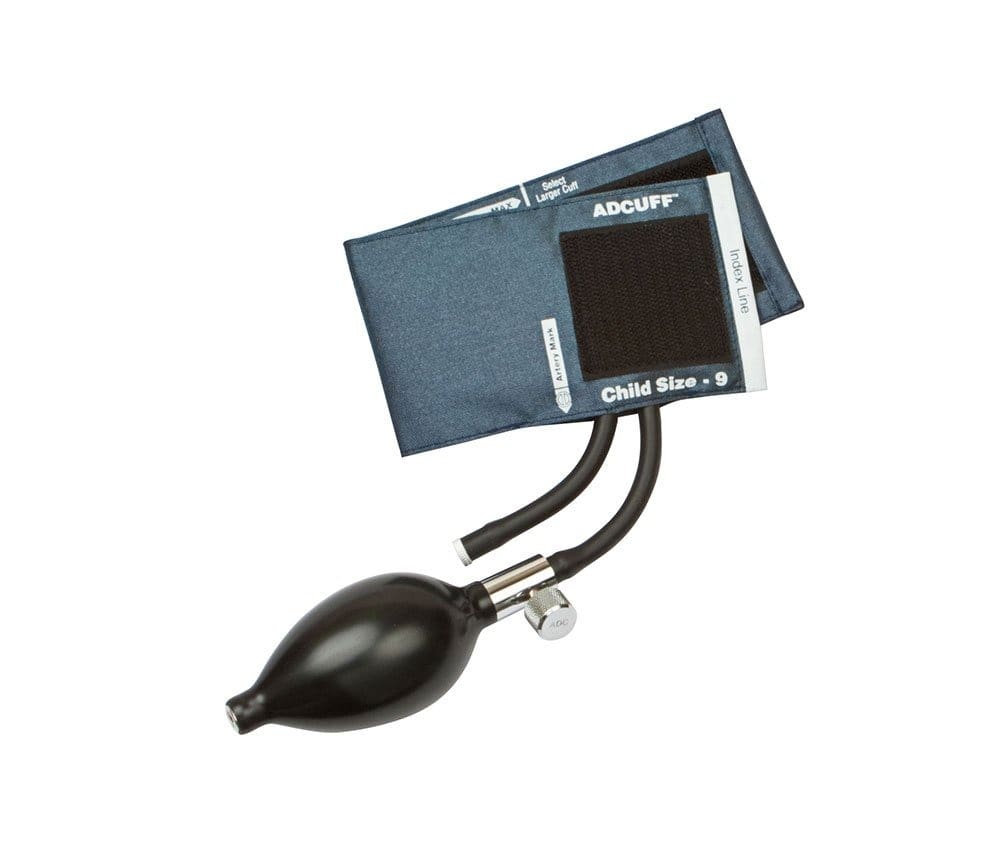

Our Adcuff sphyg inflation system can be used with most clock aneroids and mercurial instruments. The traditional Adcuff model comes with two tubes and an Adflow bulb and valve, and features a two-piece cuff and bladder:
- Durable 210 denier nylon construction
- Integral flap that secures bladder and prevents bulging
- ADC’s proprietary Size Guide marking system prevents mis-cuffing
- Longer limb ranges for improved patient coverage
- Gauge hang tab (on most sizes), bladder flap, and “property of” tag
- Hook-and-loop adhesive rated to a minimum of 30,000 open/close cycles
- Inflation bladder with one 50 cm tube and one 25 cm tube
- Adflow bulb and valve with filter screen protection
- Male bayonet connector included
- Three-year warranty
Made without phthalates or natural rubber latex. Assembled, inspected, and packaged in the U.S.A from foreign components. Meets or exceeds ANSI/AAMI/ISO 81060-1.
| Literature Name | Download | |
|---|---|---|
| ADC® Sphygmomanometer Accessories - Instructions for use | Download | |
| Connector Change September 2022 | Download | |
| Adcuff Literature | Download | |
| ADC® Bariatric Cuff | Download | |
| Designer Prints Literature | Download | |
| ADC® Accesorios Sphygmomanometer - Instrucciones de uso | Download | |
| ADC® Tensiomètres Accessoires - Mode d'emploi | Download | |
| ADC® Blutdruckmessgerät Zubehör - Gebrauchsanweisung, Pflege und Wartung | Download | |
| ADC® Sphygmomanometer Accessori - Istruzioni per l'uso | Download |

Shell

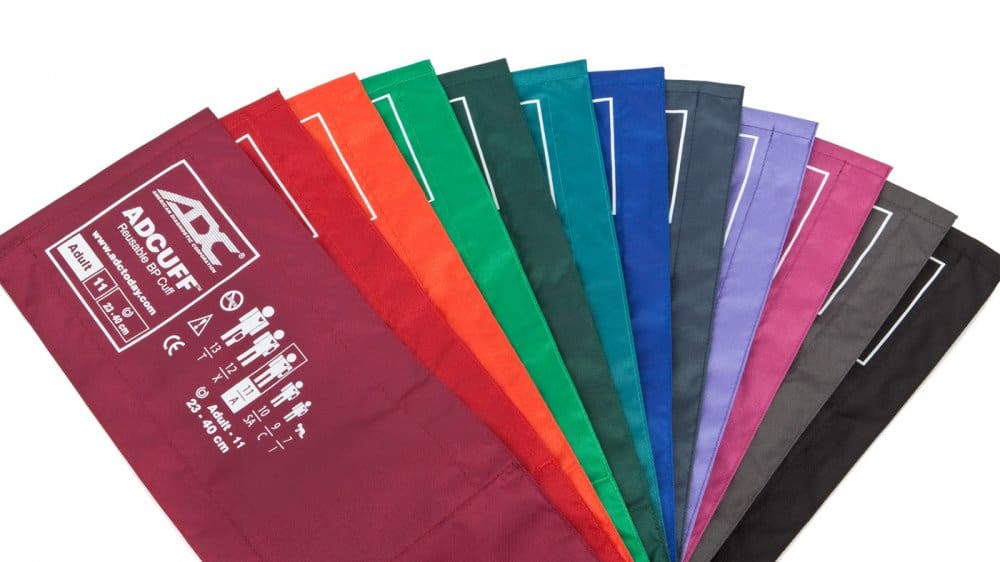

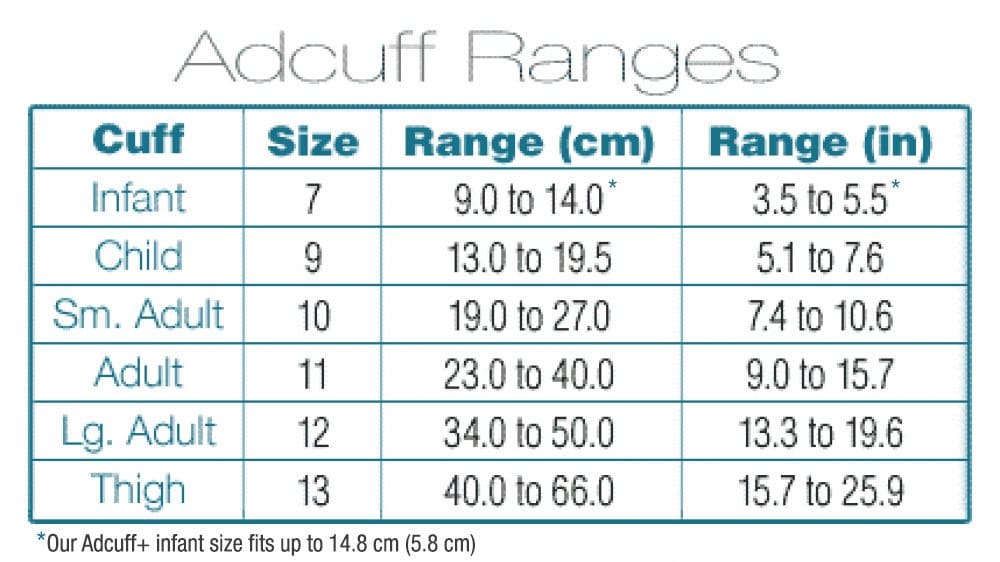

The cuff is typically made from nylon and is designed to secure the bladder around the limb. ADCUFFS are made from patient-friendly 210 denier nylon and sewn with nylon thread for easy cleaning. ADCUFFS are available in 6 sizes fitting limb ranges from 9 to 66cm, and in up to 12 colors for sizing, departmental coding, or personal preference. ADCUFFs are sized in accordance with AAMI and ANSI and AHA recommendations.

Gauge Hang Tab
A sewn strap that allows a pocket aneroid to be clipped to the cuff for convenience. Some cuff brands don’t include a hang tab, making use with a pocket-style aneroid more difficult.

Hook and Loop Adhesive

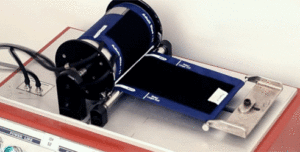

Consists of a male and female components that engage to secure the cuff. ADC’s adhesive is custom manufactured to our requirements and will provide 30,000 cycles – 3x the industry standard.

Artery Mark
The artery mark indicates the lengthwise midpoint of the bladder. When positioned over the brachial artery, the cuff and bladder will fully surround the artery ensuring proper compression and arterial occlusion. ADCUFFs feature a properly positioned mark on both inside, and outside, surfaces to facilitate positioning.

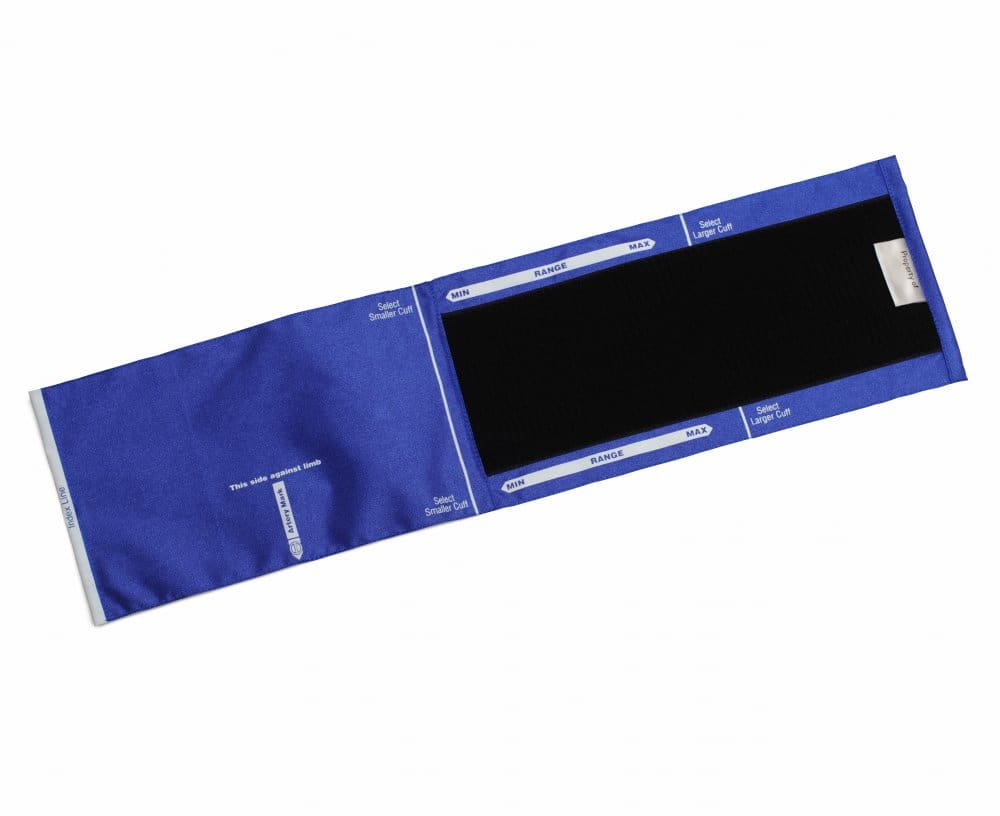

Index and Range Markings
A series of markings that inform the operator that the cuff is correctly sized for the patient. The markings coincide with the limb range noted on the cuffs.

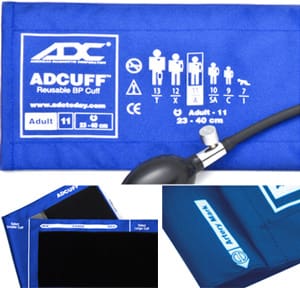

Size Guide System
The Size Guide System is the complete marking system found only on the ADCUFF. It includes the index and range markings, size icons, size box, select larger/smaller cuff guides, and color coding to simplify proper cuff selection.

Helpful Links:
Color Matrix
Terms and Conditions:

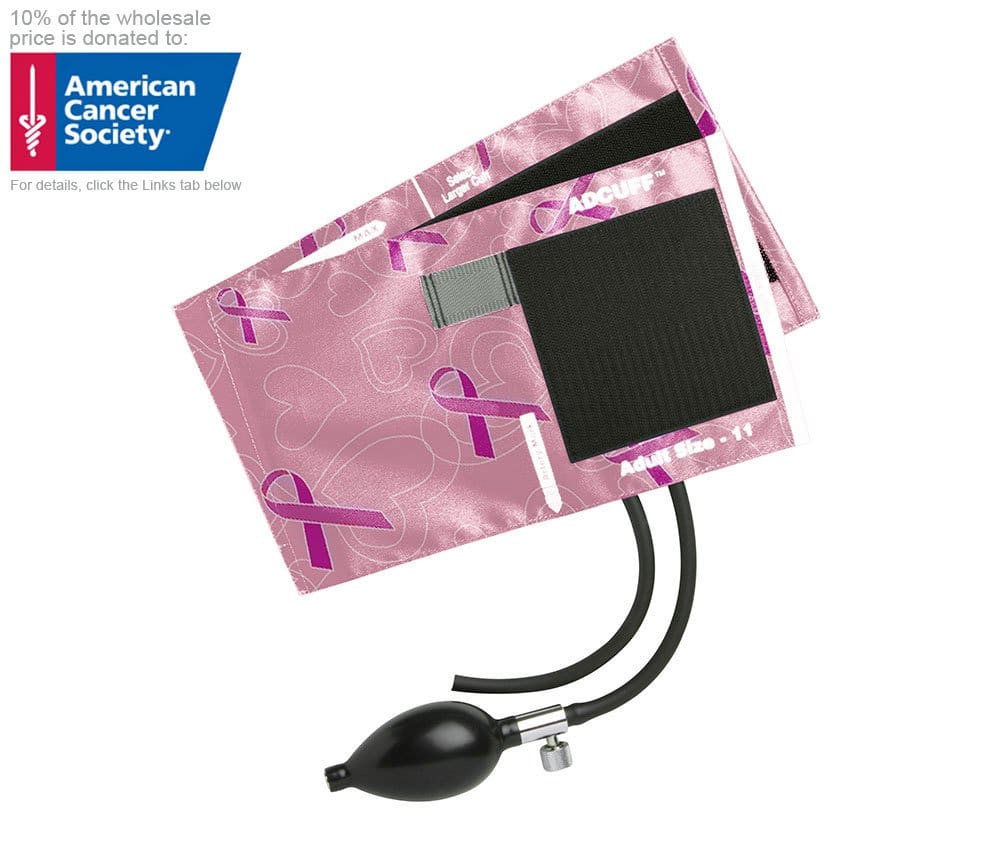

Breast Cancer Awareness Promotion Autism Awareness Promotion
